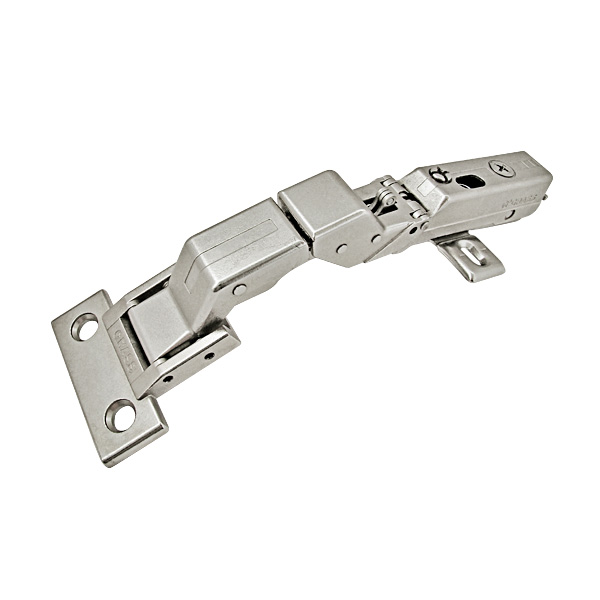

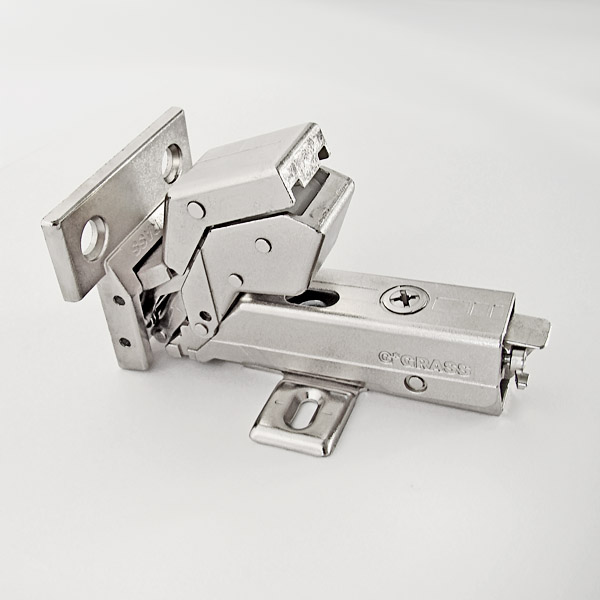

TIOMOS M0 110° – 125° slim door hinge click-on, soft-close by GRASS

Made in Austria

Item No GRASS: hinge – F029140331

                            plate H0 – F058139721

* With built-in clip and damper
* Opening angle 110° – 125°
* For doors with a thickness of 6 to 10 mm
* 3-dimensional adjustment
* For door overlays up to 25 mm
* Hinge applicable to all plates in the series TIOMOS

Hinge cover caps ordered separately.
